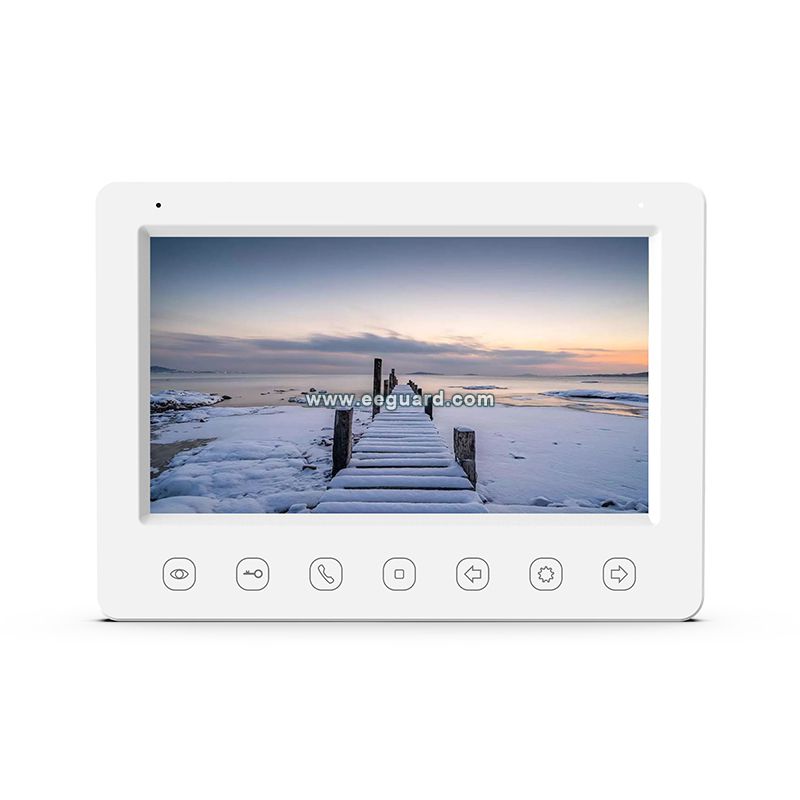

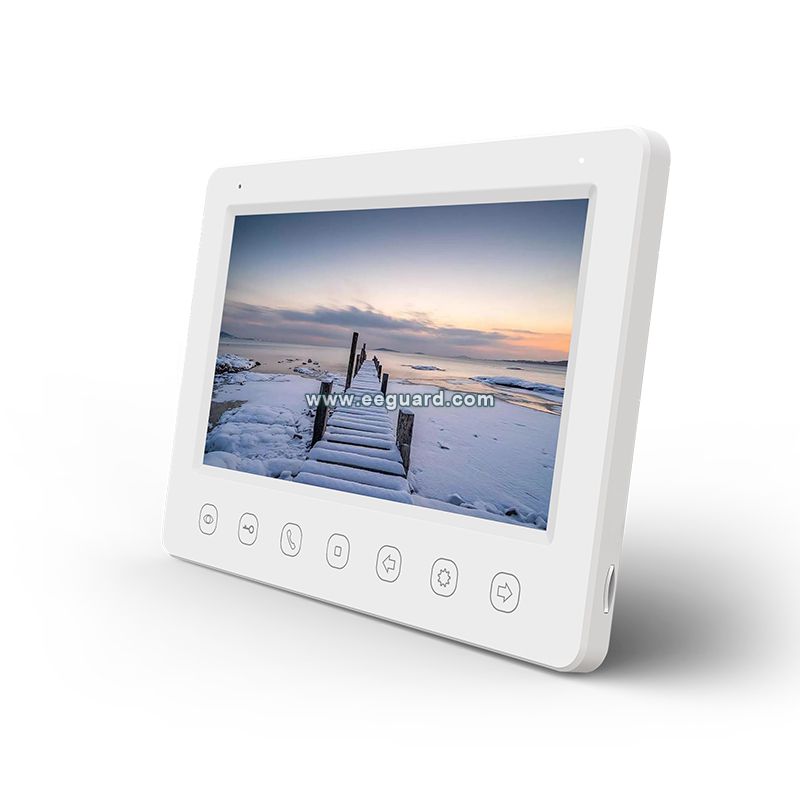

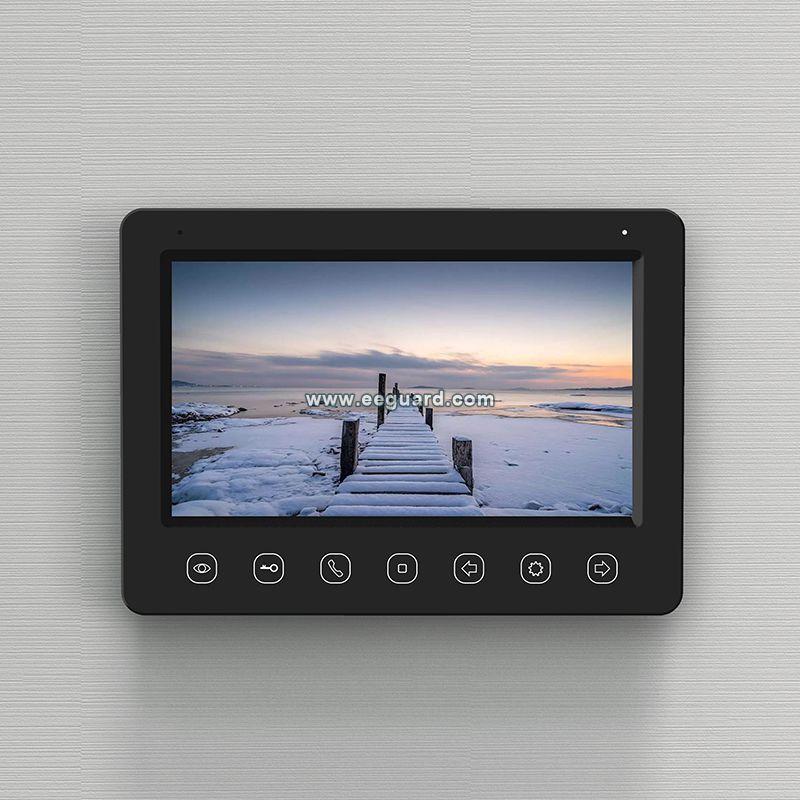

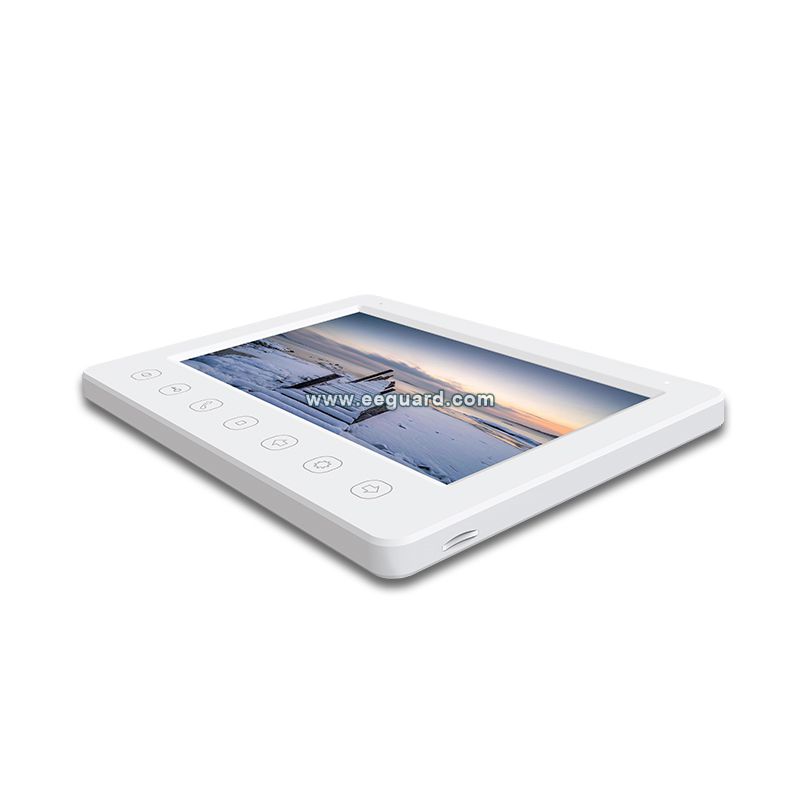

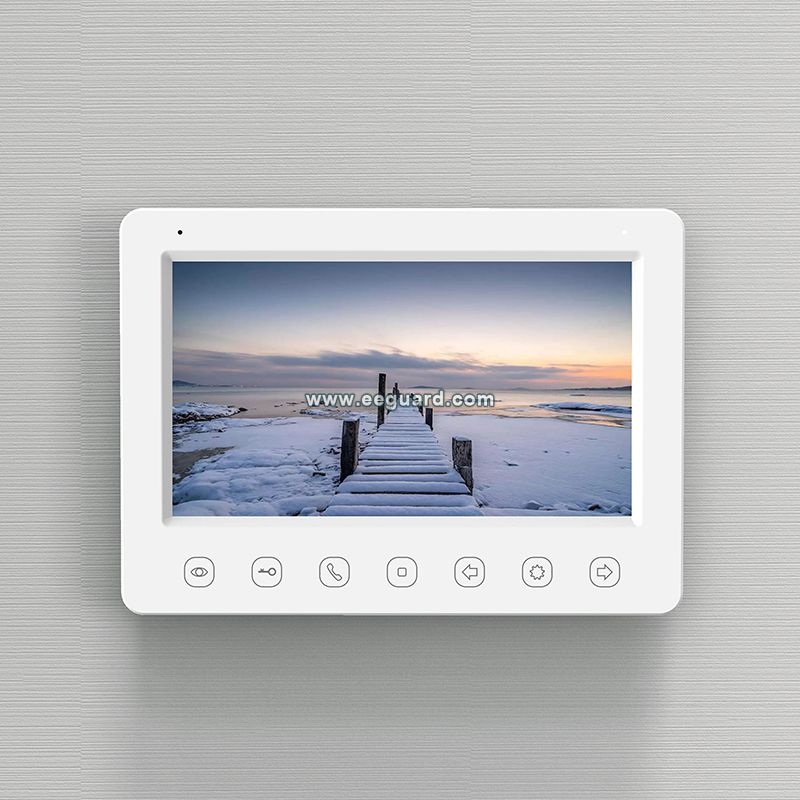

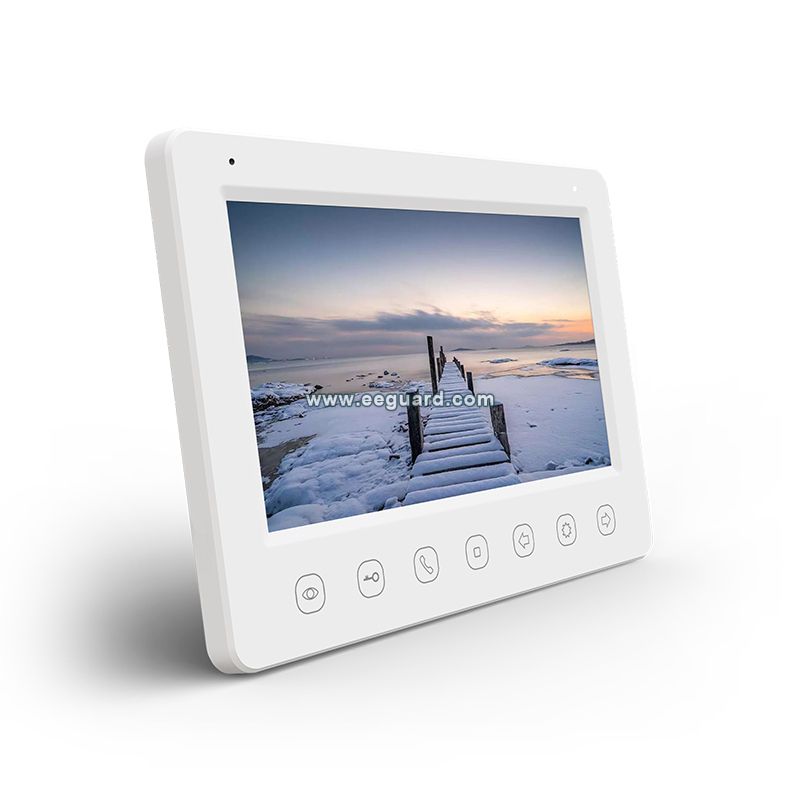

ER013

CVBS 800TVL Plastic case

Suface-mounted, Lock control / Broadcast / No disturb, Monitor doorbell or CCTV cameras

CVBS 800TVL Plastic case

  • Screen: 7" Color Digital Screen
  • TFT Resolution: 800x480
  • Signal Supports: 800TVL
  • Signal Formats: CVBS
  • Indoor Monitor Unlock Release: Supports
  • Outdoor Panel Unlock Release: Supports
  • Micro SD Card: NO
  • Video & Image Capture: NO
  • Connection: 4 Wires / CAT-5
  • Max Wire Length Connection: 100 Meters
  • Max Additional Monitors: 3
  • Video Channels: 4
  • Power Consumption: 7W(Max), 0.7W(Standby)
  • Power Supply: AC100-240V 50/60Hz / DC15V/0.8A (Optional)

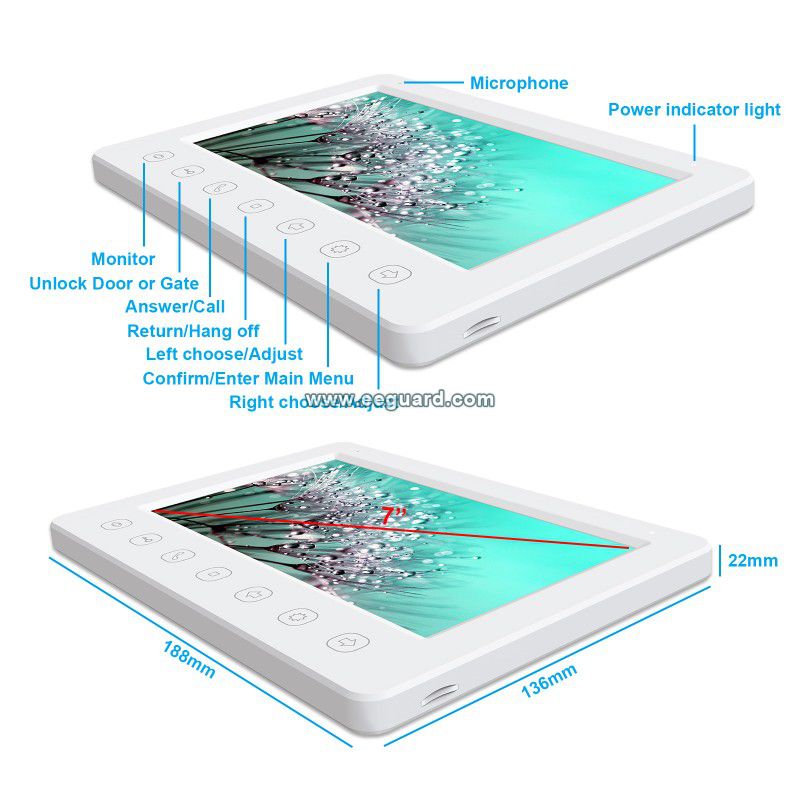

  • Dimension: 188x136x22mm

  • Parameters
  • Screen: 7" Color Digital Screen
  • TFT Resolution: 800x480
  • Signal Supports: 800TVL
  • Signal Formats: CVBS
  • Indoor Monitor Unlock Release: Supports
  • Outdoor Panel Unlock Release: Supports
  • Micro SD Card: NO
  • Video & Image Capture: NO
  • Connection: 4 Wires / CAT-5
  • Max Wire Length Connection: 100 Meters
  • Max Additional Monitors: 3
  • Video Channels: 4
  • Power Consumption: 7W(Max), 0.7W(Standby)
  • Power Supply: AC100-240V 50/60Hz / DC15V/0.8A (Optional)
  • Dimension: 188x136x22mm

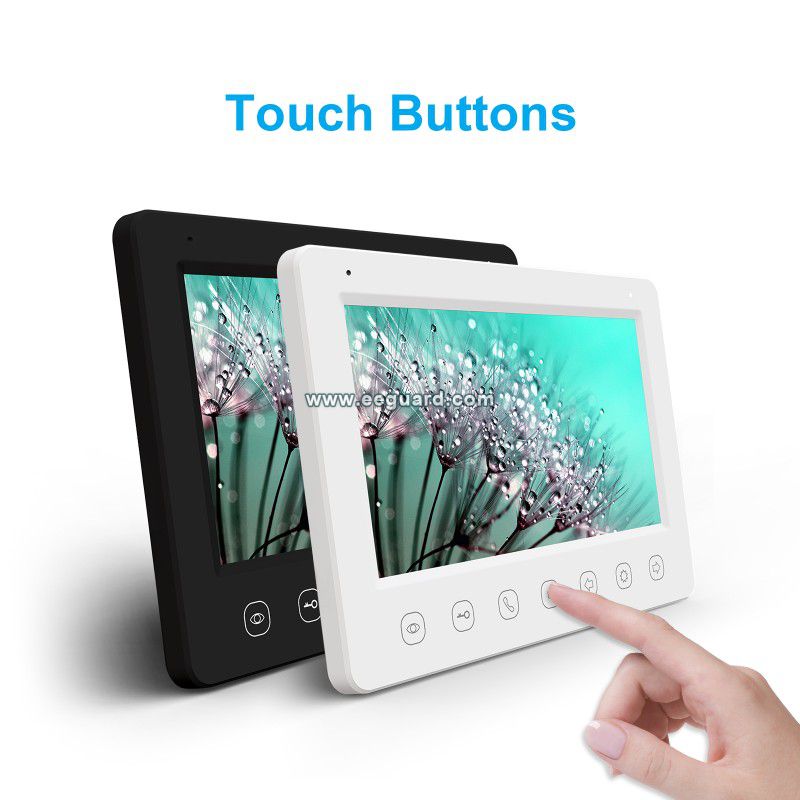

7" Video door phone with touch buttons

Lock control / Broadcast / No disturb

Monitor doorbell or CCTV cameras

Door-Call  transfer to other monitors

Make calls between monitors

Monitor listening to another monitor

Suface-mounted

AC100-240V 50/60Hz / DC15V/0.8A (Optional)

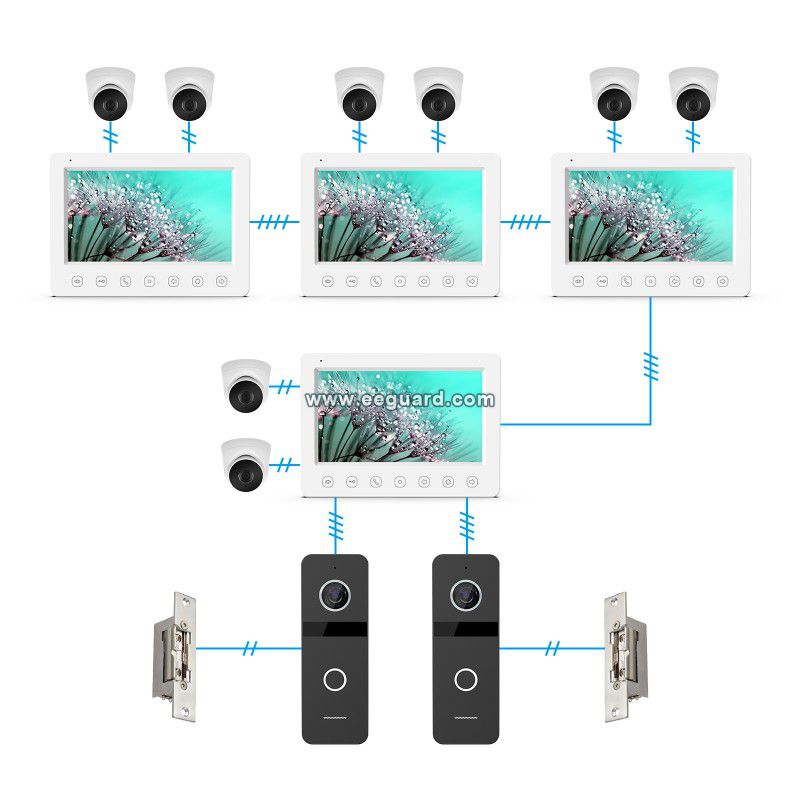

Supports:

* 2 outdoor doorbells+4 indoor monitors+2 CCTV cameras

* 1 outdoor doorbell+4 indoor monitors+3 CCTV cameras

* Door Panel unlock & Indoor monitor unlock


ER013
Suface-mounted, Lock control / Broadcast / No disturb, Monitor doorbell or CCTV cameras
