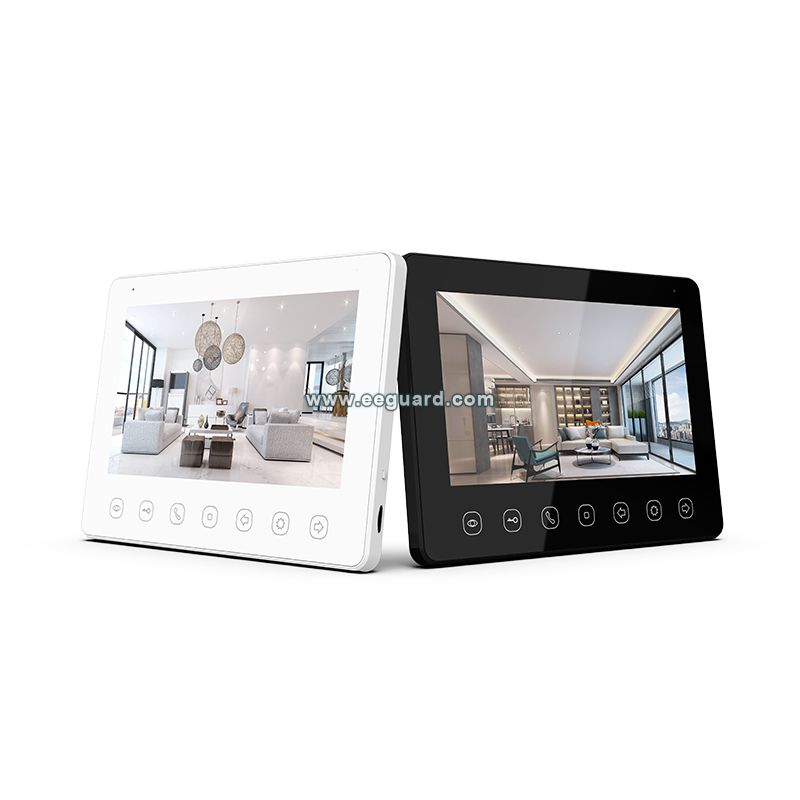

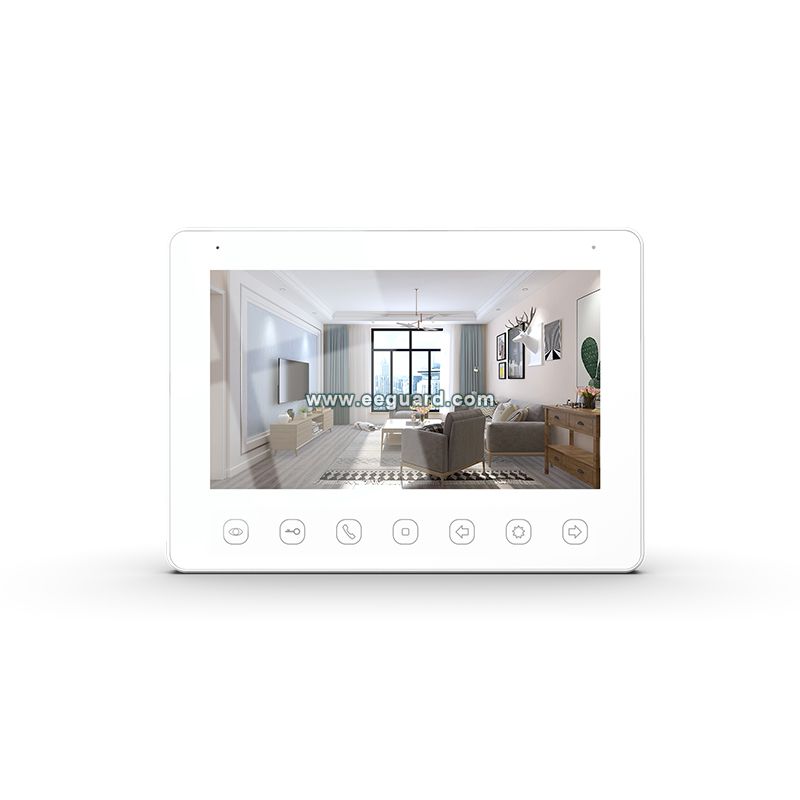

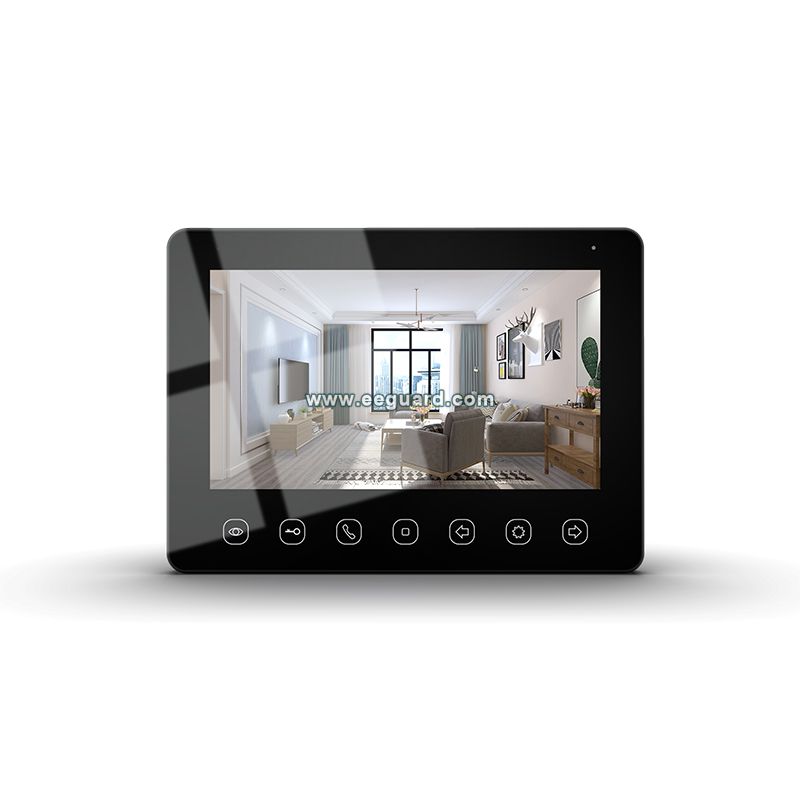

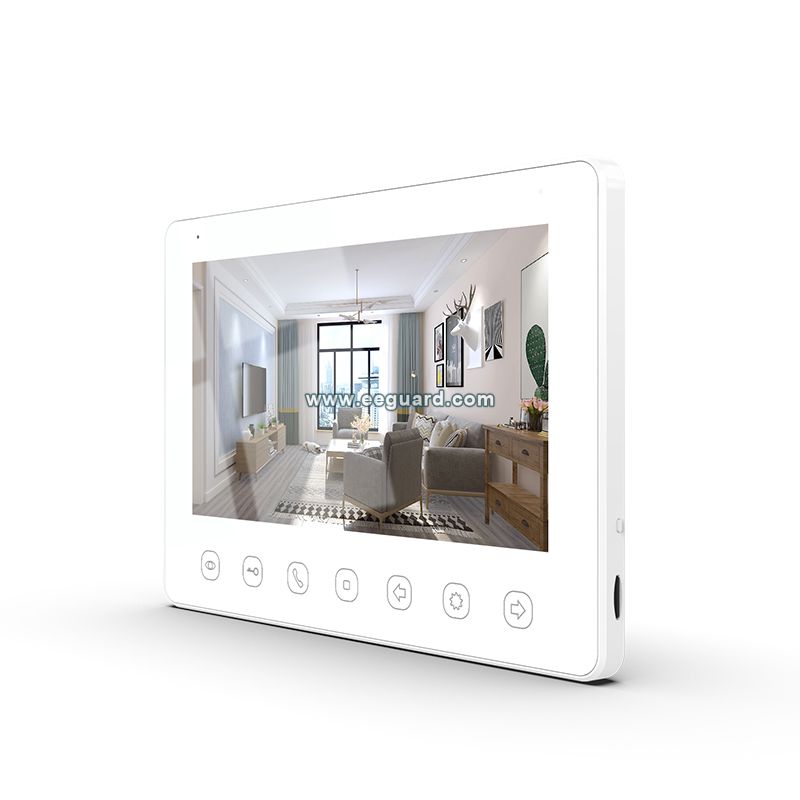

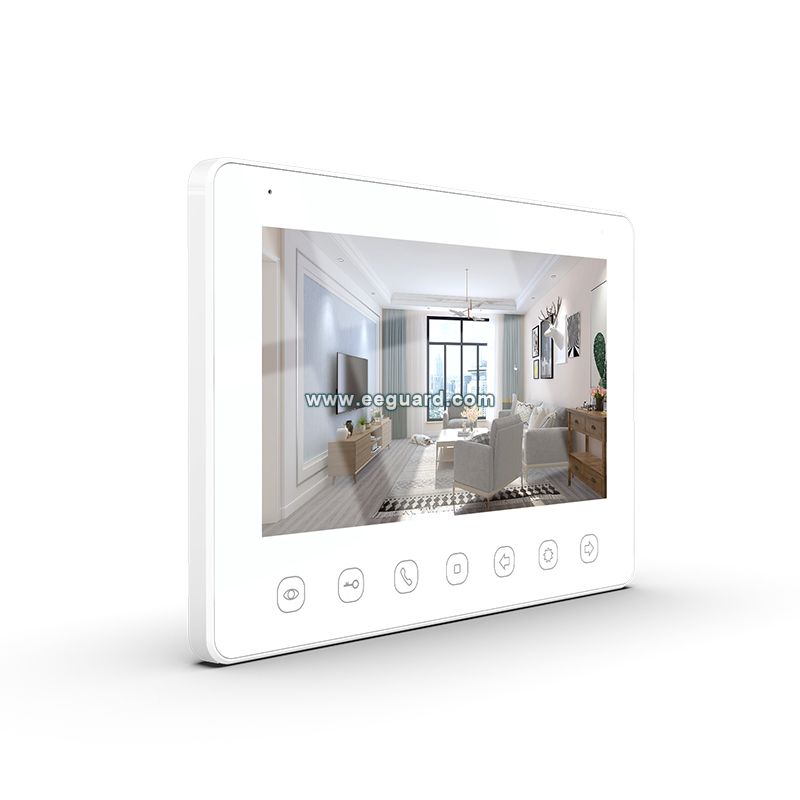

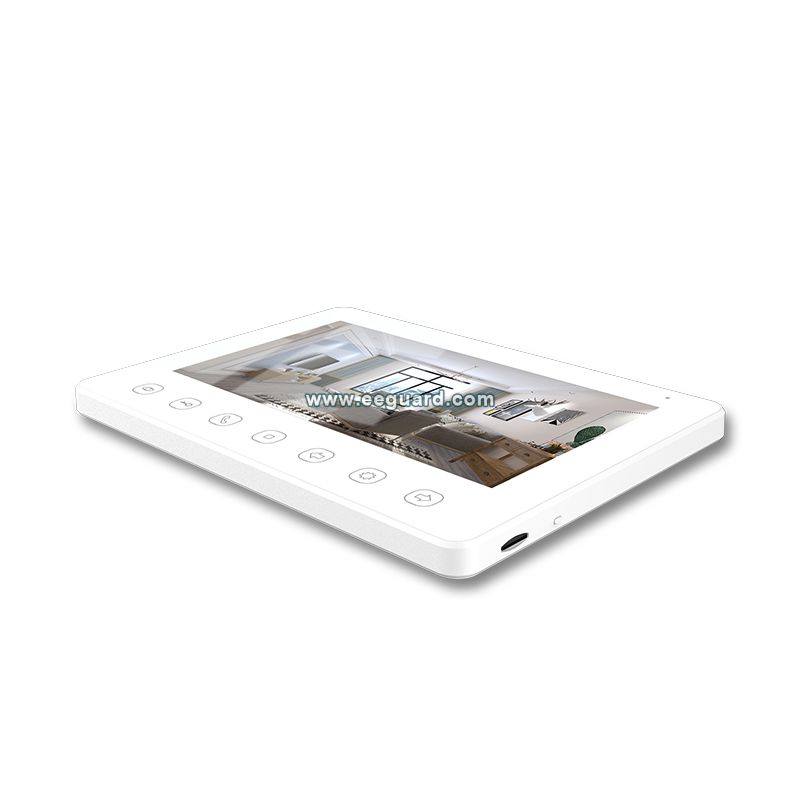

ER012HD

1080P AHD CVBS 800TVL Plastic case

Customize UI & Melody & Voice message, Lock control / Broadcast / No disturb, Suface-mounted

1080P AHD CVBS 800TVL Plastic case

  • Screen： 7" Color Digital Screen
  • TFT Resolution： 1024x600
  • Signal Supports： 800TVL / 1080P
  • Signal Formats： CVBS / AHD
  • Indoor Monitor Unlock Release： Supports
  • Outdoor Panel Unlock Release： Supports
  • Micro SD Card： NO
  • Video & Image Capture： NO
  • Connection： 4 Wires / CAT-5
  • Max Wire Length Connection： 100 Meters
  • Max Additional Monitors： 3
  • Video Channels： 4
  • Power Consumption： 9W(Max), 2.5W(Standby)
  • Power Supply： AC110-240V / DC15V/0.8A
  • Dimension： 188x136x22mm

  • Parameters
  • Screen： 7" Color Digital Screen
  • TFT Resolution： 1024x600
  • Signal Supports： 800TVL / 1080P
  • Signal Formats： CVBS / AHD
  • Indoor Monitor Unlock Release： Supports
  • Outdoor Panel Unlock Release： Supports
  • Micro SD Card： NO
  • Video & Image Capture： NO
  • Connection： 4 Wires / CAT-5
  • Max Wire Length Connection： 100 Meters
  • Max Additional Monitors： 3
  • Video Channels： 4
  • Power Consumption： 9W(Max), 2.5W(Standby)
  • Power Supply： AC110-240V / DC15V/0.8A
  • Dimension： 188x136x22mm

1080P 7" video door phone with touch buttons

Customize UI & Melody & Voice message

Button light background

Customize UI

Lock control / Broadcast / No disturb

Monitor doorbell or CCTV cameras

Door-Call  transfer to other monitors

Make calls between monitors

Monitor listening to another monitor

Suface-mounted

DC15V/0.8A / AC100-240V 50/60Hz (Optional)


Supports:

* 2 outdoor doorbells+4 indoor monitors+2 CCTV cameras

* 1 outdoor doorbell+4 indoor monitors+3 CCTV cameras

* Door Panel unlock & Indoor monitor unlock


ER012HD
Customize UI & Melody & Voice message, Lock control / Broadcast / No disturb, Suface-mounted
