EM001-Apartment management center

1080P AHD CVBS 720P 800TVL 128G Plastic case ID/IC Unlock

ID UNLOCK: EM4001,EM4100,TK4001,TK4100, IC UNLOCK
Mifare S50,S70,FM11RF08

1080P AHD CVBS 720P 800TVL 128G Plastic case ID/IC Unlock

  • Screen: 7" Color Digital Screen
  • TFT Resolution: 800x480
  • Signal Supports: 800TVL / 720P / 1080P
  • Signal Formats: CVBS / AHD
  • Indoor Monitor Unlock Release: Supports
  • Outdoor Panel Unlock Release: Supports
  • Micro SD Card: Supports
  • Video & Image Capture: Supports
  • Power: DC36V(CAT-5), DC15V(4 Wires)
  • Power Consumption: 9W(Max), 3.5W(Standby)
  • Connection: CAT- 5 / 4 Wires
  • Support ID/IC Card: 20480pcs
  • Operating Temperature: 0℃ to +40℃
  • Dimension: 360x215x74.5mm

  • Parameters
  • Screen: 7" Color Digital Screen
  • TFT Resolution: 800x480
  • Signal Supports: 800TVL / 720P / 1080P
  • Signal Formats: CVBS / AHD
  • Indoor Monitor Unlock Release: Supports
  • Outdoor Panel Unlock Release: Supports
  • Micro SD Card: Supports
  • Video & Image Capture: Supports
  • Power: DC36V(CAT-5), DC15V(4 Wires)
  • Power Consumption: 9W(Max), 3.5W(Standby)
  • Connection: CAT- 5 / 4 Wires
  • Support ID/IC Card: 20480pcs
  • Operating Temperature: 0℃ to +40℃
  • Dimension: 360x215x74.5mm

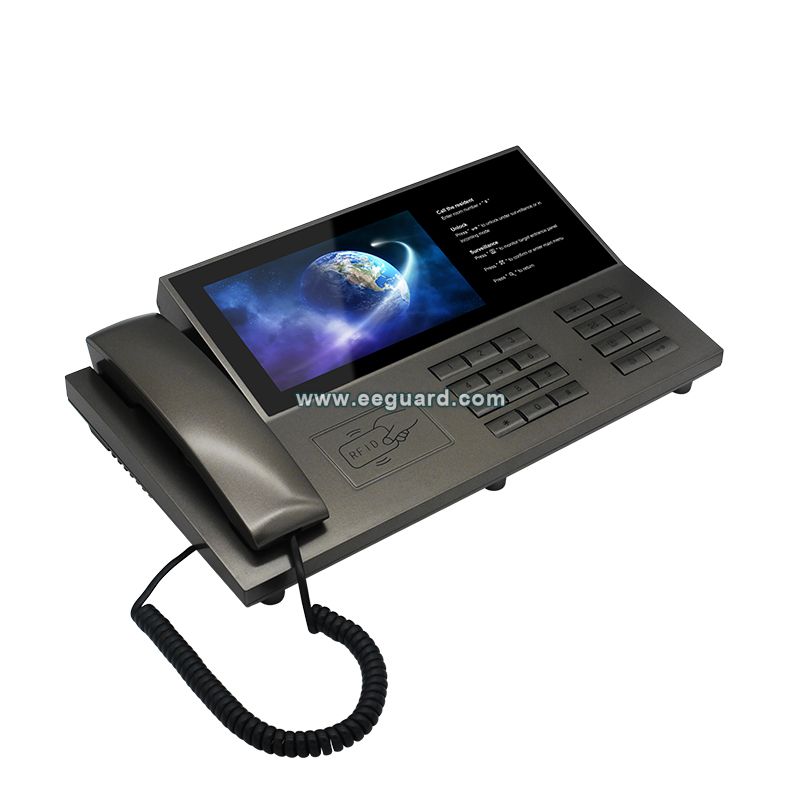

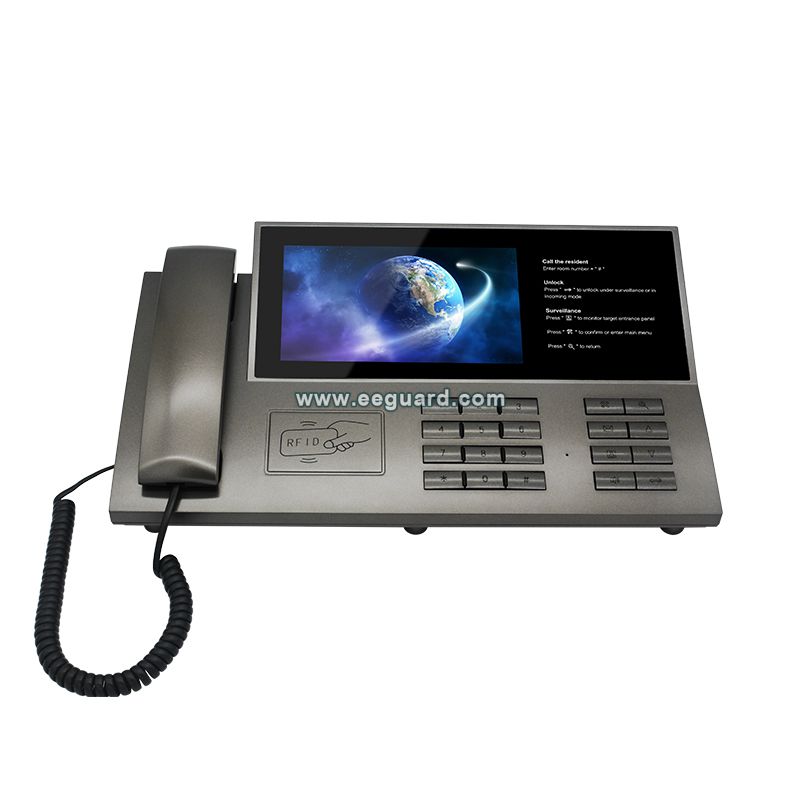

Apartment management center

Memory 7" video door phone with touch buttons

Lock control / Broadcast / Calendar / Alarm clock

Monitor doorbell or CCTV cameras

Make calls between monitors

Simple DVR motion detection/Photo frame/Multimedia manager

Auto leave message function

Suface-mounted / DC36V(CAT5),DC15V(4wires)

Supports 20480pcs cards and 99 apartment outdoor panels


Supports:

* 2 outdoor doorbells+9999 flats+2 CCTV cameras

* 1 outdoor doorbell+9999 flats+3 CCTV cameras


EM001-Apartment management center
ID UNLOCK: EM4001,EM4100,TK4001,TK4100, IC UNLOCK
Mifare S50,S70,FM11RF08
