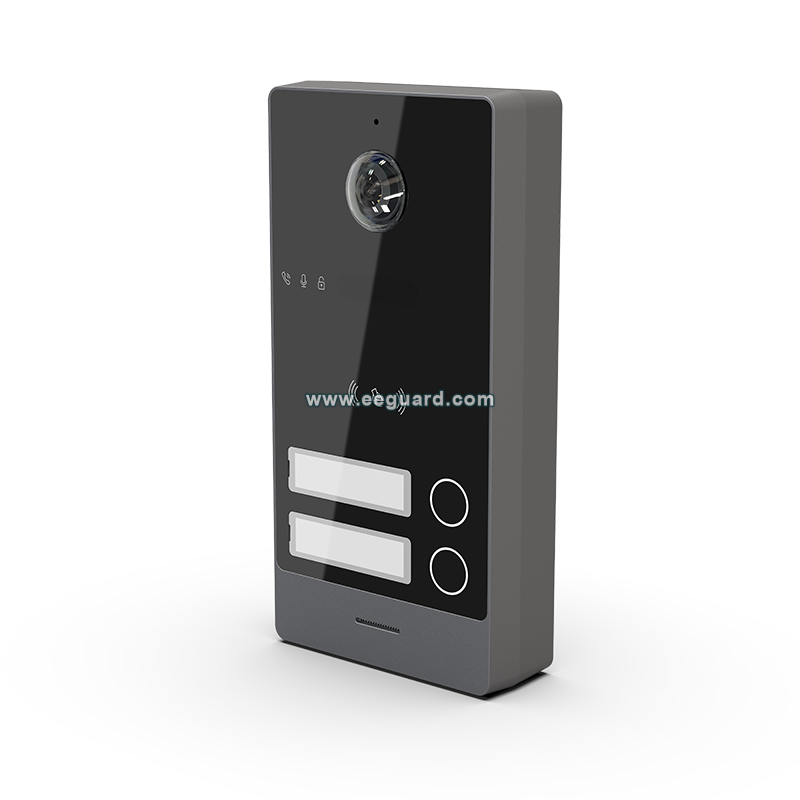

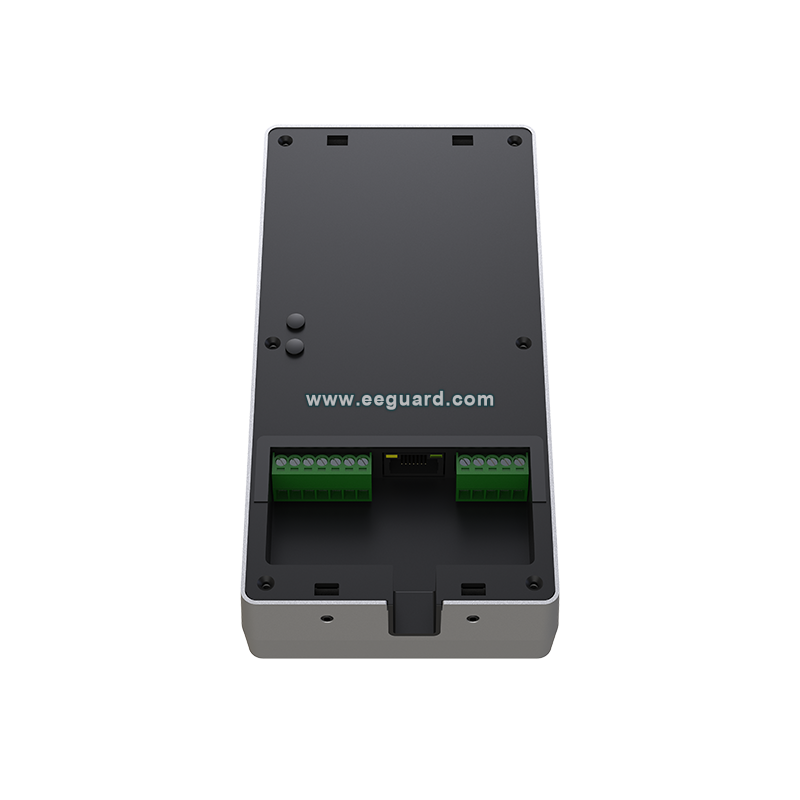

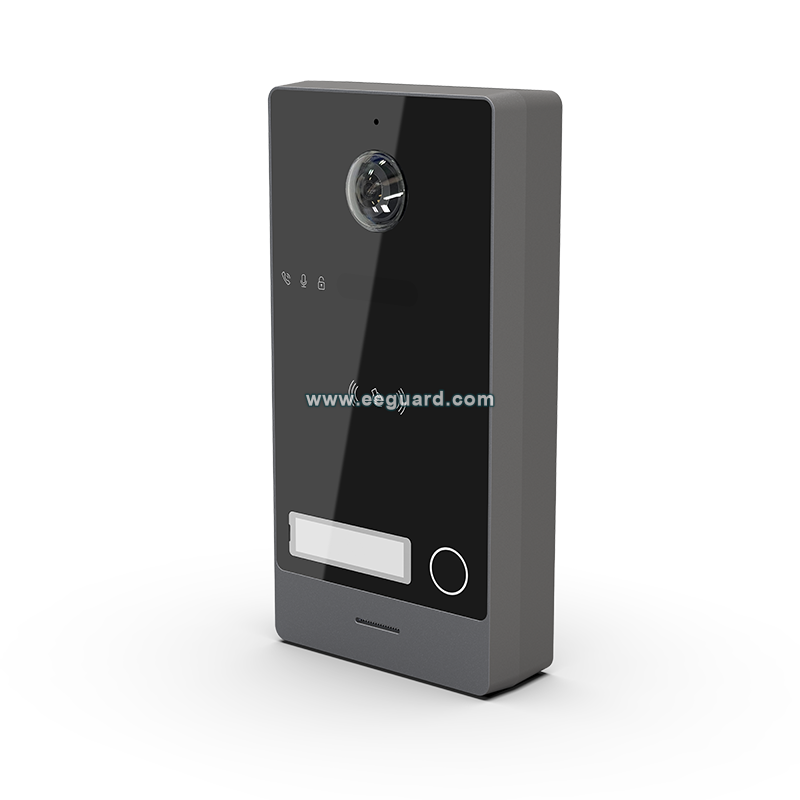

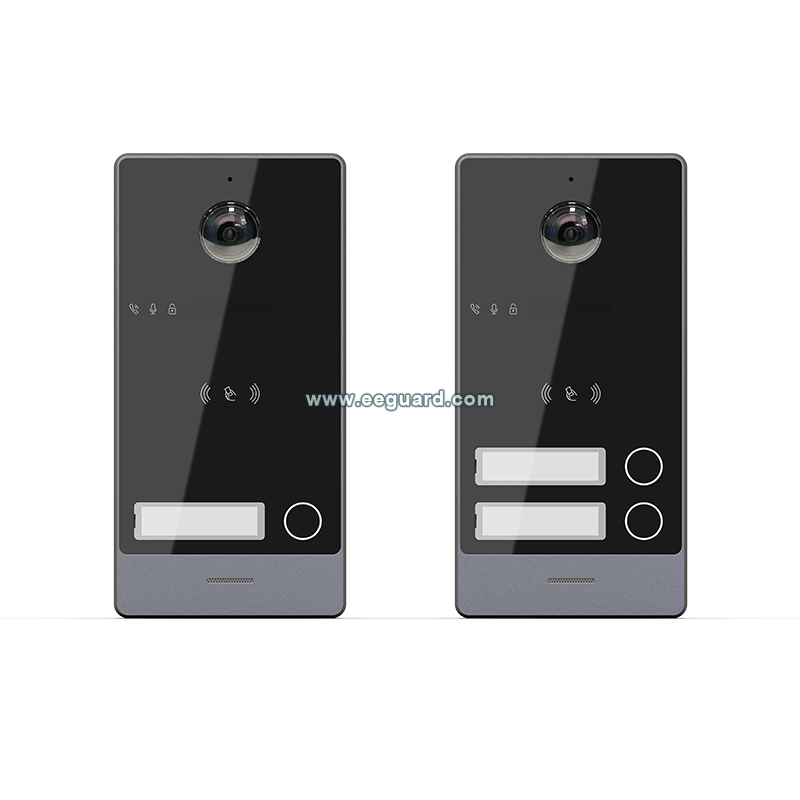

ED008-1/2BID

1080P Metal case ID/IC Unlock

IP65 waterproof, Night Vision, Metal case, CMOS 2MP HD colorful camera, Wire interface, 10M/100M Self-adaptive Etherne

1080P Metal case ID/IC Unlock

    Video intercom functions

    Wide viewing angle

    Self-adaptive infrared light supplement

    High-performance embedded SOC processor

    Full duplex voice intercom

    Support 2 apartments

    Can control a lock relay, a GATE relay

    Support ID/IC Cards Unlock

    Vandal-proof with full metal case

    Support anti-disassembly alarm function

    Waterproof IP65

    IR supplement



    ID/IC INTERFACE:

    125KHZ (ID) / 13.56MHZ (IC)

    Em marine (ID) / Mifare (IC)

    Supports ISO/IEC 18000-2 type A (ID)

    Supports ISO/IEC 14443 type A 106kb/s (IC)


  • Parameters

    Video intercom functions

    Wide viewing angle

    Self-adaptive infrared light supplement

    High-performance embedded SOC processor

    Full duplex voice intercom

    Support 2 apartments

    Can control a lock relay, a GATE relay

    Support ID/IC Cards Unlock

    Vandal-proof with full metal case

    Support anti-disassembly alarm function

    Waterproof IP65

    IR supplement



    ID/IC INTERFACE:

    125KHZ (ID) / 13.56MHZ (IC)

    Em marine (ID) / Mifare (IC)

    Supports ISO/IEC 18000-2 type A (ID)

    Supports ISO/IEC 14443 type A 106kb/s (IC)


Household max.:1/2

Camera: CMOS Low Illumination 2 MP HD Colorful Camera

Angle of view:H:125°, V:72°  /H:150°

Supplement light:Smart IR

Reader:Em marine / Mifare card

Video compression standard:H.265 (default), H.264

Wiegand:Support

Gate:NO/NC (MAX AC/DC30V 4A)

Lock control:NO (MAX DC12V 700mA)

External chime:Support

Exit button:Support

Door contact:Support

Tamper alarm:Support

Protection:IP65, IK07

Ethernet:10M/100Mbps

Installation:Surface

Product size:162x82x29mm

Materials:Aluminum

Working temperature:-40°C ~ +60°C

Power supply:POE IEEE 802.3af / DC15V, 0.8A


ED008-1/2BID
IP65 waterproof, Night Vision, Metal case, CMOS 2MP HD colorful camera, Wire interface, 10M/100M Self-adaptive Etherne
