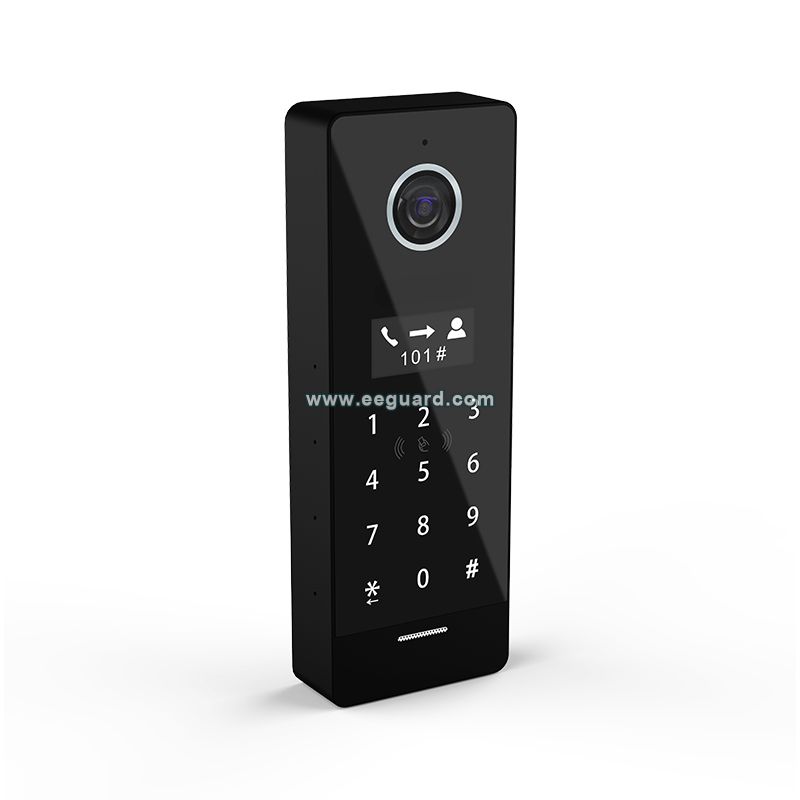

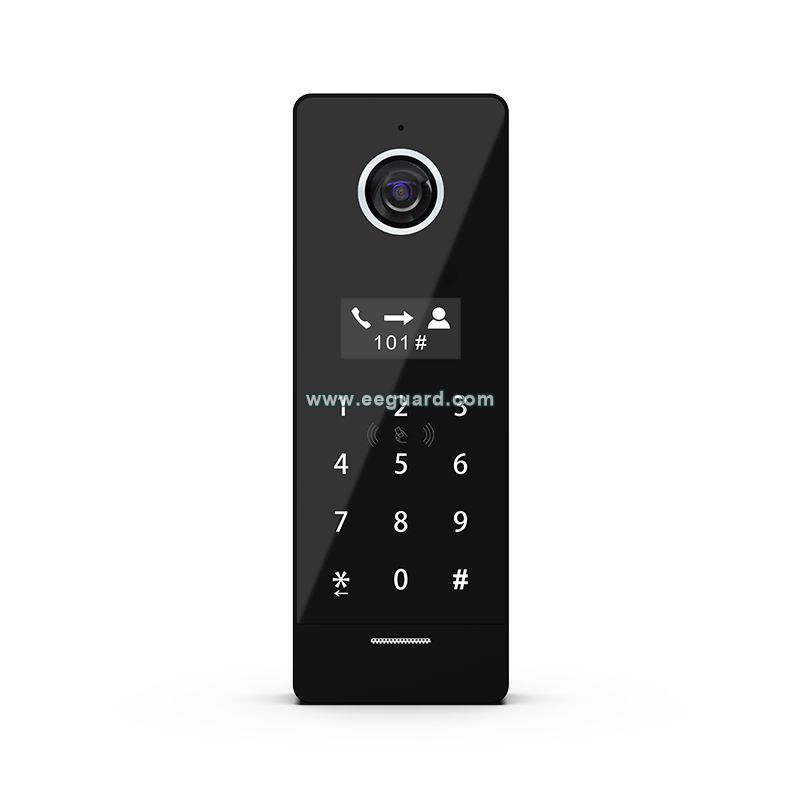

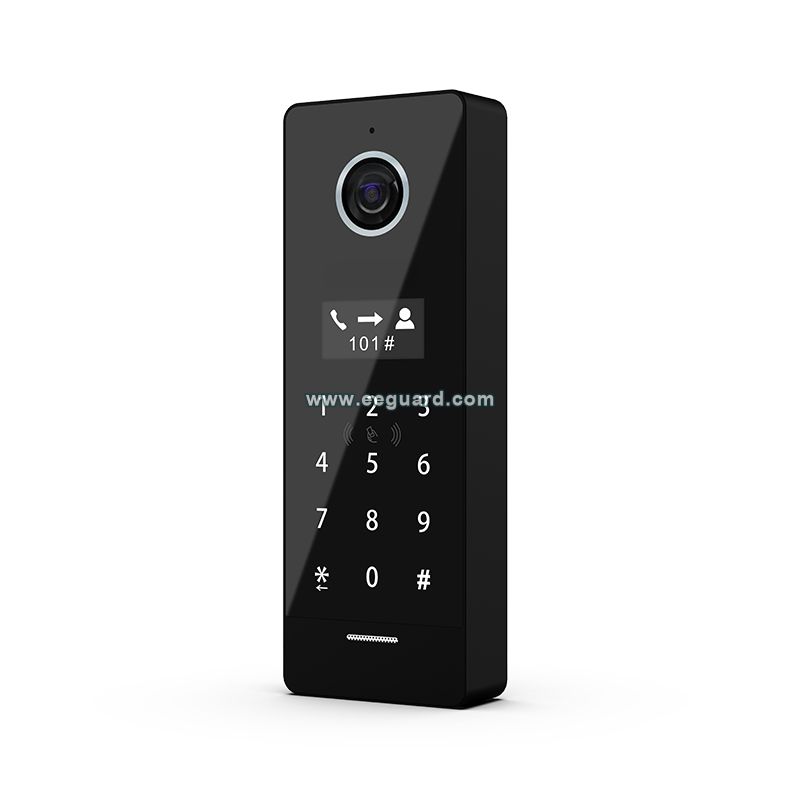

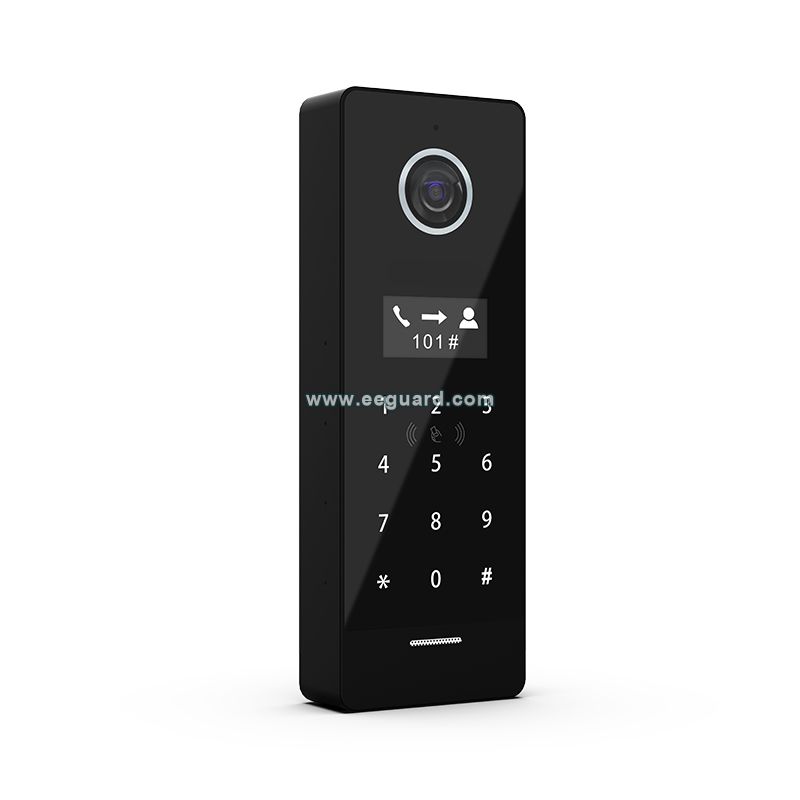

ED004-20BPID
1080P AHD Metal case ID/IC UnlockIP66 waterproof, Night Vision, Metal case, CMOS 2MP HD colorful camera, Wire interface, 10M/100M Self-adaptive Etherne
1080P AHD Metal case ID/IC Unlock
- Display screen： 1.3 inches
- Display resolution： 64x128
- Processor： High-Performance Embedded SOC Processor
- Operation system： Embedded Linux Operation System
- Network interface： 10M/100M adaptive
- Camera： 2MP CMOS HD camera
- Video compression standard： H.265 (default), H264
- Resolution： 1920x1080
- Video frame rate： 25 fps
- Audio intercom mode： Full duplex
- Audio compression standard： G.711 U
- Audio compression rate： 64 Kbps
- Audio quality： Noise Suppression and Echo Cancellation
- Light supplement mode： IR supplement
- Ringbell： NO (MAX AC/DC36V 4A) (Optional)
- Lock： NO/NC (Max AC/DC36V 4A)
- Gate： NO (MAX AC/DC36V 4A) (Optional)
- Speaker： 1W/8 ohm
- Microphone： -38dB±2/2V
- Power supply： POE IEEE 802.3af / DC15V, 0.8A
- Viewing Angle： 120°
- Power consumption： 6W(Max), 3W(Standby)
- Family max.： 20
- Working temperature： -40°C - 60°C
- Working humidity： 10% - 90%
- IP protection level： IP66

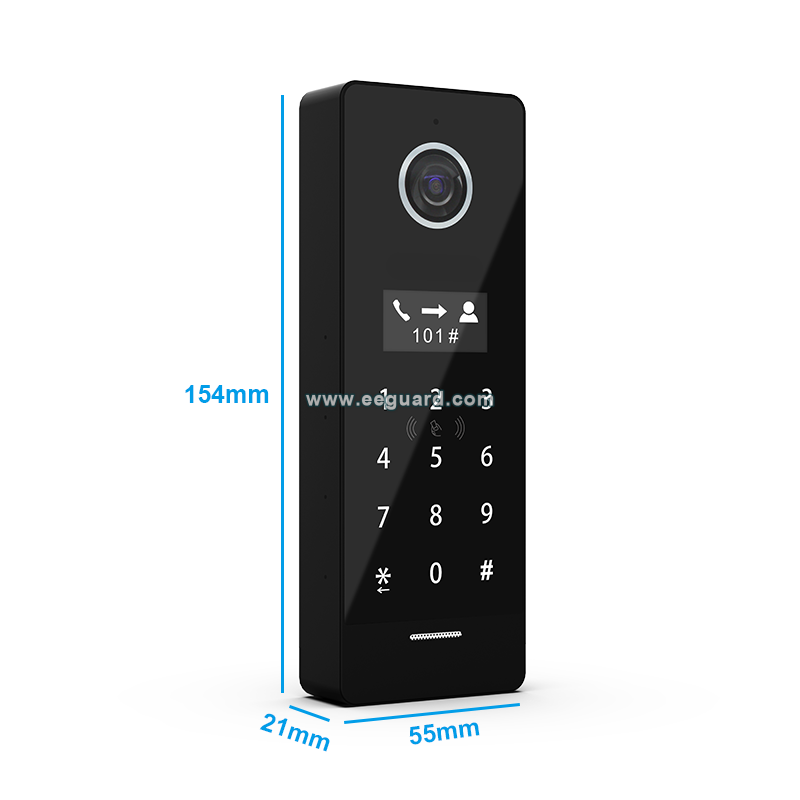

- Dimensions： 154x55x21mm
- Parameters
- Display screen： 1.3 inches
- Display resolution： 64x128
- Processor： High-Performance Embedded SOC Processor
- Operation system： Embedded Linux Operation System
- Network interface： 10M/100M adaptive
- Camera： 2MP CMOS HD camera
- Video compression standard： H.265 (default), H264
- Resolution： 1920x1080
- Video frame rate： 25 fps
- Audio intercom mode： Full duplex
- Audio compression standard： G.711 U
- Audio compression rate： 64 Kbps
- Audio quality： Noise Suppression and Echo Cancellation
- Light supplement mode： IR supplement
- Ringbell： NO (MAX AC/DC36V 4A) (Optional)
- Lock： NO/NC (Max AC/DC36V 4A)
- Gate： NO (MAX AC/DC36V 4A) (Optional)
- Speaker： 1W/8 ohm
- Microphone： -38dB±2/2V
- Power supply： POE IEEE 802.3af / DC15V, 0.8A
- Viewing Angle： 120°
- Power consumption： 6W(Max), 3W(Standby)
- Family max.： 20
- Working temperature： -40°C - 60°C
- Working humidity： 10% - 90%
- IP protection level： IP66
- Dimensions： 154x55x21mm

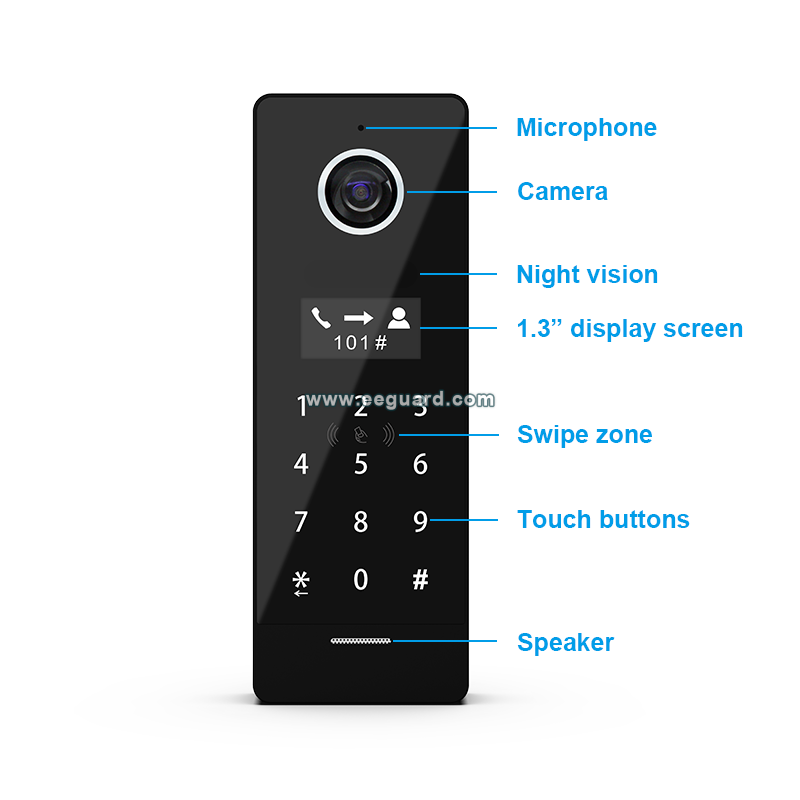

Video intercom functions
Wide viewing angle 125°
Self-adaptive infrared light supplement
High-performance embedded SOC processor
Full duplex voice intercom
Support 20 apartments
Can control a lock relay, a GATE relay
Support ID/IC Cards Unlock
Support Password Unlock
Vandal-proof with full metal case
Support anti-disassembly alarm function
Waterproof IP66
IR supplement
1.3' screen display
Working Temperature-30°C~+60°C
ID/IC INTERFACE:
125KHZ (ID) / 13.56MHZ (IC)
Em marine (ID) / Mifare (IC)
Supports ISO/IEC 18000-2 type A (ID)
Supports ISO/IEC 14443 type A 106kb/s (IC)
