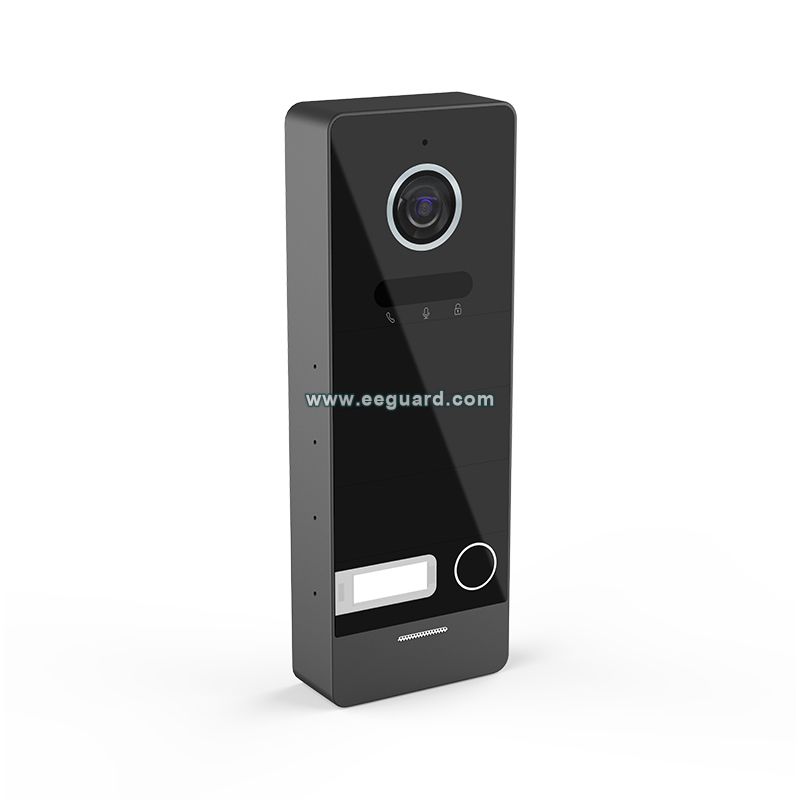

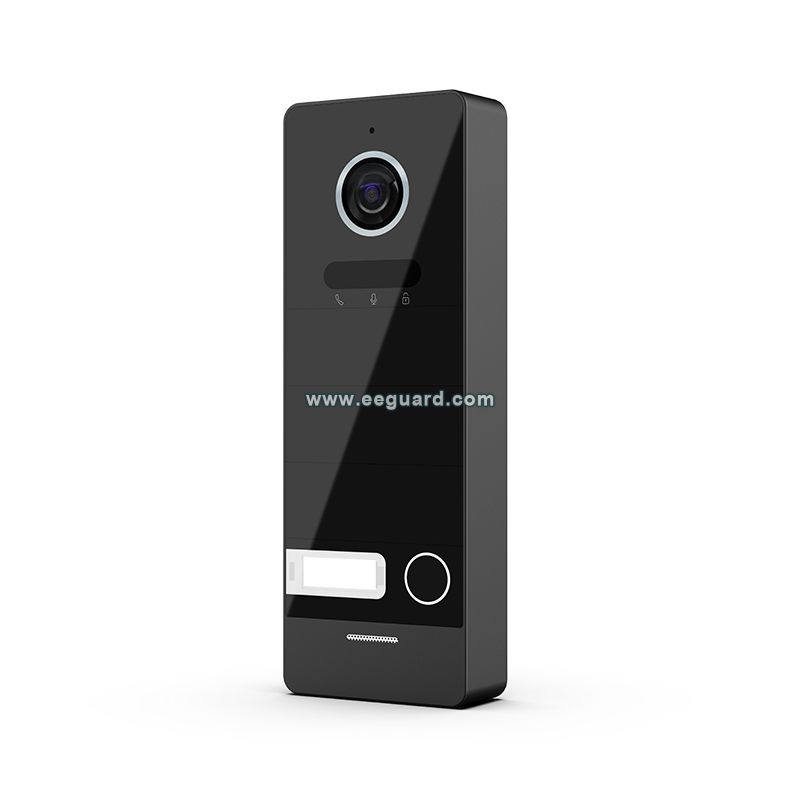

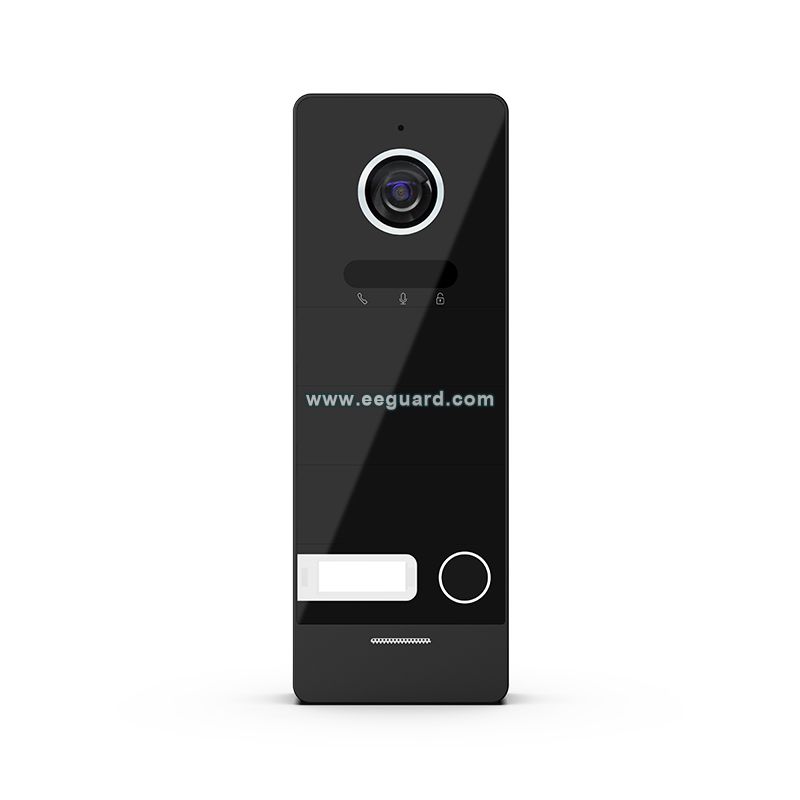

ED004-1B

1080P AHD Metal case

IP66 waterproof, Night Vision, Metal case, CMOS 2MP HD colorful camera, Wire interface, 10M/100M Self-adaptive Etherne

1080P AHD Metal case

  • Processor: High-Performance Embedded SOC Processor
  • Operation system: Embedded Linux Operation System
  • Network interface: 10M/100M adaptive
  • Camera: 2MP CMOS HD camera
  • Video compression standard: H.265 (default), H264
  • Resolution: 1920x1080
  • Video frame rate: 25 fps
  • Audio intercom mode: Full duplex
  • Audio compression standard: G.711 U
  • Audio compression rate: 64 Kbps
  • Audio quality: Noise Suppression and Echo Cancellation
  • Light supplement mode: IR supplement
  • Ringbell: NO (MAX AC/DC36V 4A) (Optional)
  • Lock: NO/NC (Max AC/DC36V 4A)
  • Gate: NO (MAX AC/DC36V 4A) (Optional)
  • Speaker: 1W/8 ohm
  • Microphone: -38dB±2/2V
  • Power supply: POE IEEE 802.3af / 15V, 0.8A
  • Viewing Angle: 120°
  • Power consumption: 4.5W(Max), 3W(Standby)
  • Family max.: 1
  • Working temperature: -40°C - 60°C
  • Working humidity: 10% - 90%
  • IP protection level: IP66
  • Dimensions: 154x55x21mm

  • Parameters
  • Processor: High-Performance Embedded SOC Processor
  • Operation system: Embedded Linux Operation System
  • Network interface: 10M/100M adaptive
  • Camera: 2MP CMOS HD camera
  • Video compression standard: H.265 (default), H264
  • Resolution: 1920x1080
  • Video frame rate: 25 fps
  • Audio intercom mode: Full duplex
  • Audio compression standard: G.711 U
  • Audio compression rate: 64 Kbps
  • Audio quality: Noise Suppression and Echo Cancellation
  • Light supplement mode: IR supplement
  • Ringbell: NO (MAX AC/DC36V 4A) (Optional)
  • Lock: NO/NC (Max AC/DC36V 4A)
  • Gate: NO (MAX AC/DC36V 4A) (Optional)
  • Speaker: 1W/8 ohm
  • Microphone: -38dB±2/2V
  • Power supply: POE IEEE 802.3af / 15V, 0.8A
  • Viewing Angle: 120°
  • Power consumption: 4.5W(Max), 3W(Standby)
  • Family max.: 1
  • Working temperature: -40°C - 60°C
  • Working humidity: 10% - 90%
  • IP protection level: IP66
  • Dimensions: 154x55x21mm

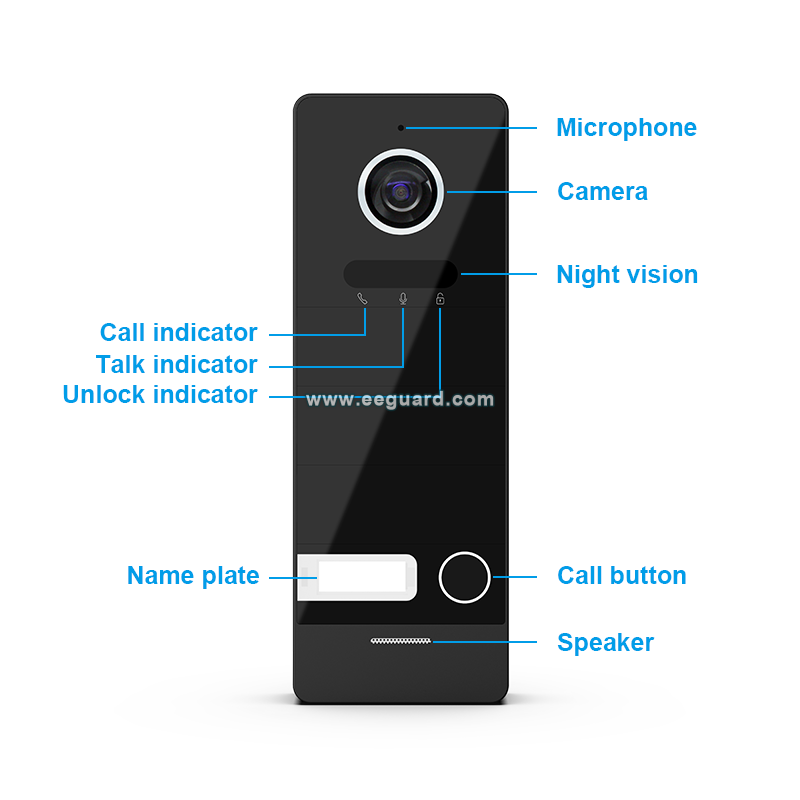

Video intercom functions

Wide viewing angle

Self-adaptive infrared light supplement

High-performance embedded SOC processor

Full duplex voice intercom

Support 1 apartment

Can control a lock relay, a GATE relay

Vandal-proof with full metal case

Support anti-disassembly alarm function

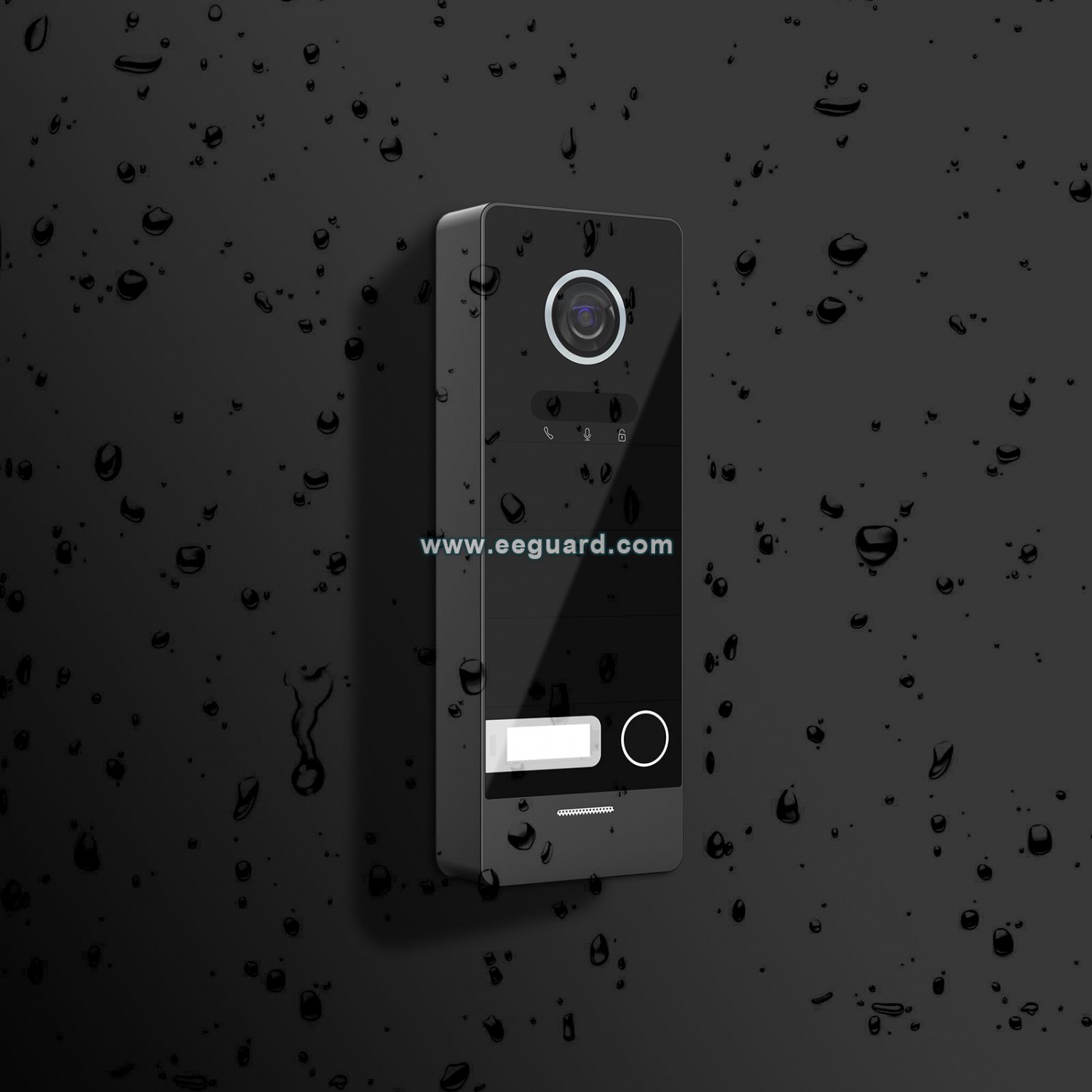

Waterproof IP66

IR supplement


ED004-1B
IP66 waterproof, Night Vision, Metal case, CMOS 2MP HD colorful camera, Wire interface, 10M/100M Self-adaptive Etherne
