ED002BIDW

1080P AHD 128G IP/WIFI APP TUYA Metal case ID/IC Unlock Build in WIFI/IP module

IP66 waterproof, Night Vision, Metal case, Wires connection, Support unlock by mobile TUYA APP, Support IC/ID cards unlock

1080P AHD 128G IP/WIFI APP TUYA Metal case ID/IC Unlock Build in WIFI/IP module

  • Processor: High-performance embedded SOC processor
  • Operation system: Embedded linux operation system
  • Internal storage: Standard 32G (Max 128G optional)
  • Network interface: 10M/100M adaptive
  • Operating frequencies: 2.4GHz-2.4835GHz / 5.15GHz-5.85GHz
  • IEEE standards: IEEE 802.11 a/b/g/n
  • Camera: 2MP CMOS HD camera
  • Video compression standard: H.265 (default), H264
  • Resolution: 1920x1080
  • Video frame rate: 25 fps
  • Audio intercom mode: Full duplex
  • Audio compression standard: G.711 U
  • Audio compression rate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Light supplement mode: IR supplement
  • Ringbell: NO (MAX AC/DC36V 4A)
  • Lock: NO/NC (Max AC/DC36V 4A)
  • Gate: NO (Max AC/DC36V 4A)
  • Speaker: 1W/8 ohm
  • Microphone: -38dB±2/2V
  • Power supply: DC15V-24V, 0.8A
  • Viewing Angle: 120°
  • Power consumption: 4.5W(Max), 3W(Standby)
  • Family max.: 1
  • Working temperature: -40°C - 60°C
  • Working humidity: 10% - 90%
  • IP protection level: IP66

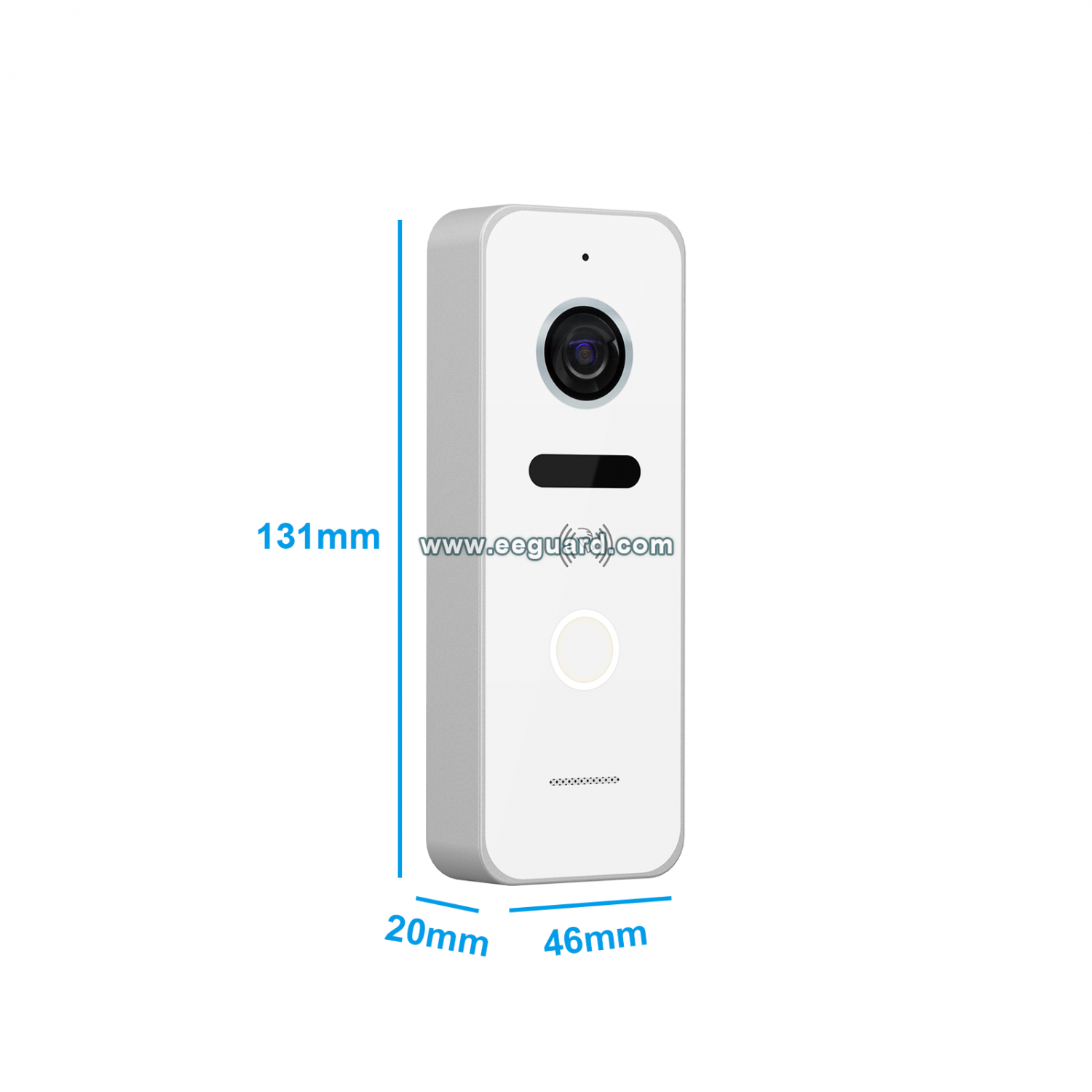

  • Dimensions: 131x46x20mm

  • Parameters
  • Processor: High-performance embedded SOC processor
  • Operation system: Embedded linux operation system
  • Internal storage: Standard 32G (Max 128G optional)
  • Network interface: 10M/100M adaptive
  • Operating frequencies: 2.4GHz-2.4835GHz / 5.15GHz-5.85GHz
  • IEEE standards: IEEE 802.11 a/b/g/n
  • Camera: 2MP CMOS HD camera
  • Video compression standard: H.265 (default), H264
  • Resolution: 1920x1080
  • Video frame rate: 25 fps
  • Audio intercom mode: Full duplex
  • Audio compression standard: G.711 U
  • Audio compression rate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Light supplement mode: IR supplement
  • Ringbell: NO (MAX AC/DC36V 4A)
  • Lock: NO/NC (Max AC/DC36V 4A)
  • Gate: NO (Max AC/DC36V 4A)
  • Speaker: 1W/8 ohm
  • Microphone: -38dB±2/2V
  • Power supply: DC15V-24V, 0.8A
  • Viewing Angle: 120°
  • Power consumption: 4.5W(Max), 3W(Standby)
  • Family max.: 1
  • Working temperature: -40°C - 60°C
  • Working humidity: 10% - 90%
  • IP protection level: IP66
  • Dimensions: 131x46x20mm

IP and WiFi 1080P HD Video Outdoor Panel

Advanced Security and an Ultra-slim Design

Vandal Proof with Zinc Alloy Body

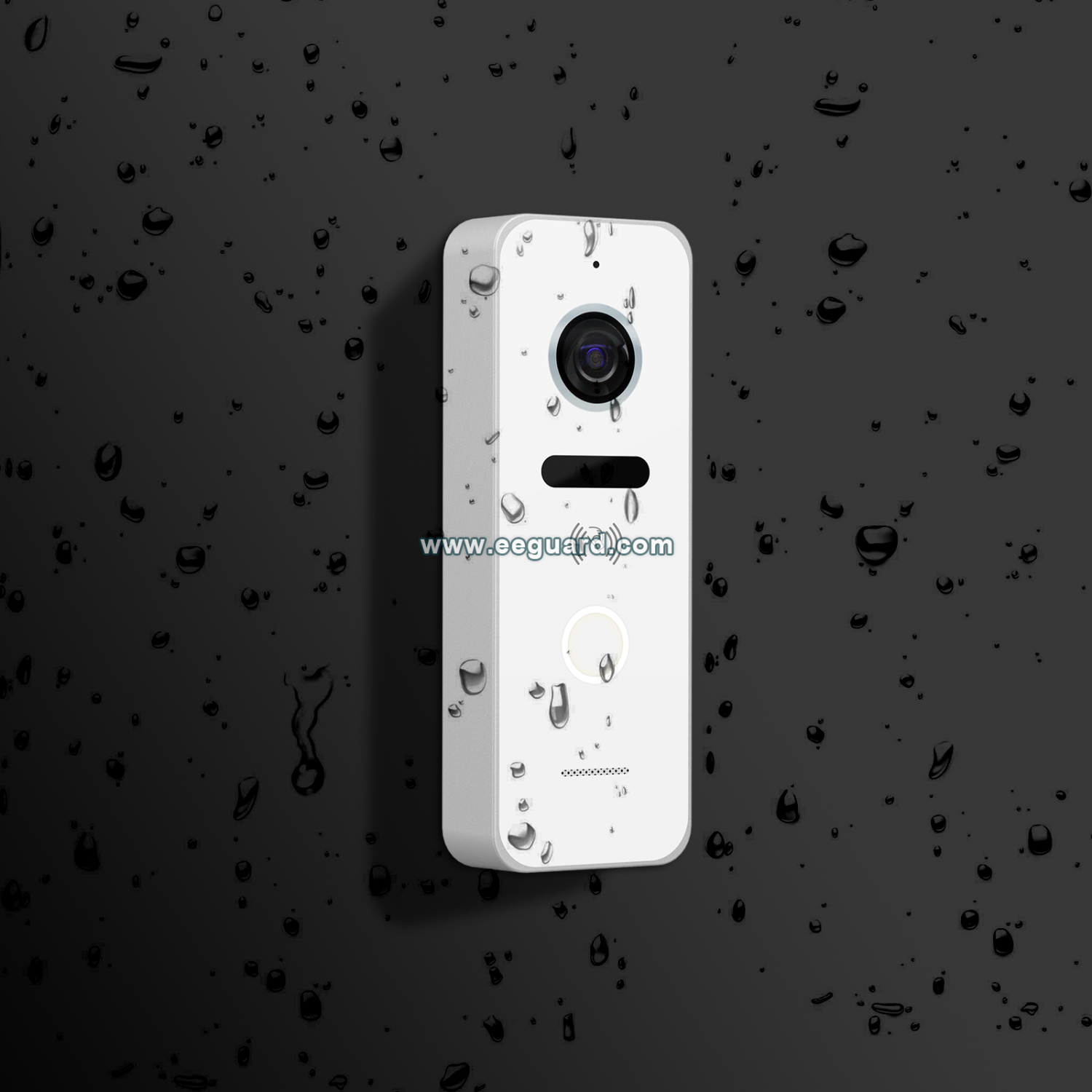

Weahter Proof IP66

Live Video and Two-Way Talk

Build in WiFi Dual-Brand 2.4G & 5G

Self-adaptive Light Supplement

Powered by a Non-stop Wired Charge

Motion Detection and Alerts

Human Motion Detection and Alerts

Pre-Roll Video Previews

Works with Existing Doorbell Chime

Gate and Lock Control by APP

Build in 32GB up to 128GB (optional)

Surface/Corner Mounting

Tamper Alerts

Support ID/IC Cards Unlock



ID/IC INTERFACE:

125KHZ (ID) / 13.56MHZ (IC)

Em marine (ID) / Mifare (IC)

Supports ISO/IEC 18000-2 type A (ID)

Supports ISO/IEC 14443 type A 106kb/s (IC)

ED002BIDW
IP66 waterproof, Night Vision, Metal case, Wires connection, Support unlock by mobile TUYA APP, Support IC/ID cards unlock
